CULPEO ZIP SOSO P978 探险公园 丛林穿越 攀岩 专用 滑轮

DESCRIPTION

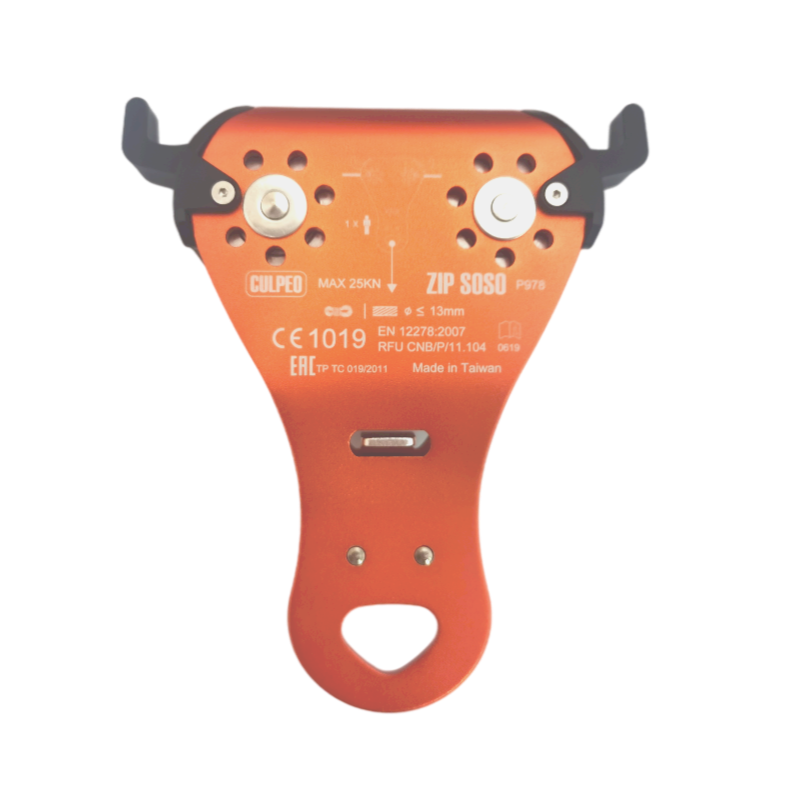

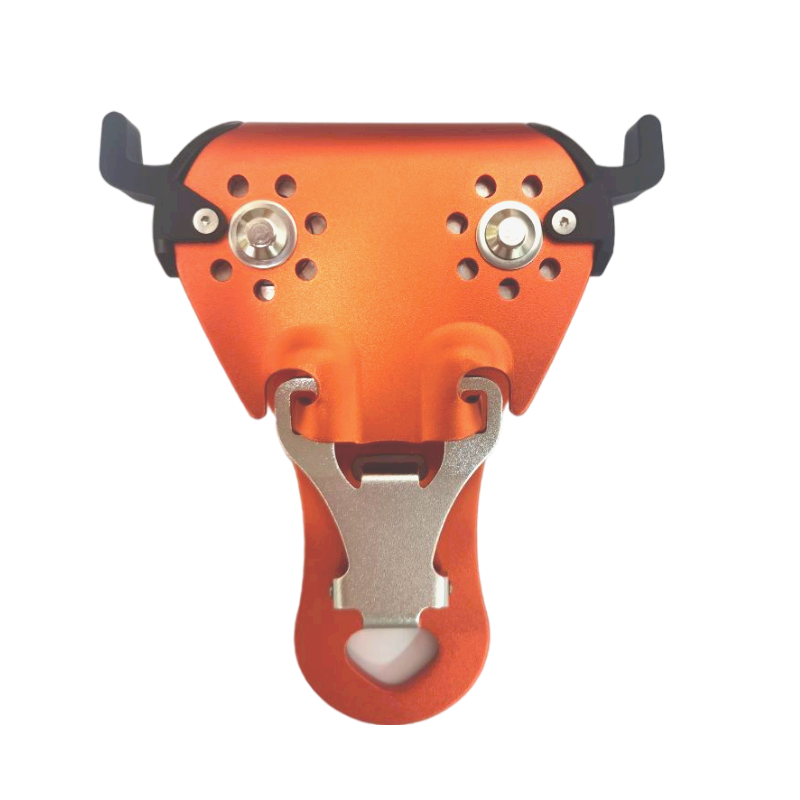

The personal protective equipment called “CULPEO SOSO P978”(fig. 1) , is a pulley with fixed flange and two in line sheaves, in compliance with the EN 12278:2007 standard, suitable to set up multiple hauling and perform cable car movements.

In addition, its compliance with RFU CNB/P/11.104 makes this pulley a mobile connection device suitable to use – as a part of the individual safety system for the protection against falls from a height -- in high rope courses defined in the EN 15567-1 standard.

NOMENCLATURE

(B) Sheaves in mild steel with ball bearings

(C) Stainless steel pins

(D) Locking device in aluminium alloy

(E) Polyamide protection

(F) Attachment point

属于个人防护装备的“ZIP SOSO P978”，是一个由固定法兰和两个成一直线的滑轮组成的攀岩滑轮，符合EN12278:2007标准，适合用于制备攀岩滑轮组，并在高架索道上进行移动。

此外，还符合RfU CNB/P/11.104，使得此攀岩滑轮成为一个移动连接装置，适于用作个人安全系统的一个组成部分，以防止在沿着由EN 15567-1标准定义的绳索攀岩时从高处坠落。

重要事项：ZIP SOSO P978必须与绳索（EN892和EN1891）、辅助绳（EN564）、直径最大13mm的金属缆索配合使用。

适用于绳索范围：≤13mm

EN12278:2007  RfU CNB/P/11.104
